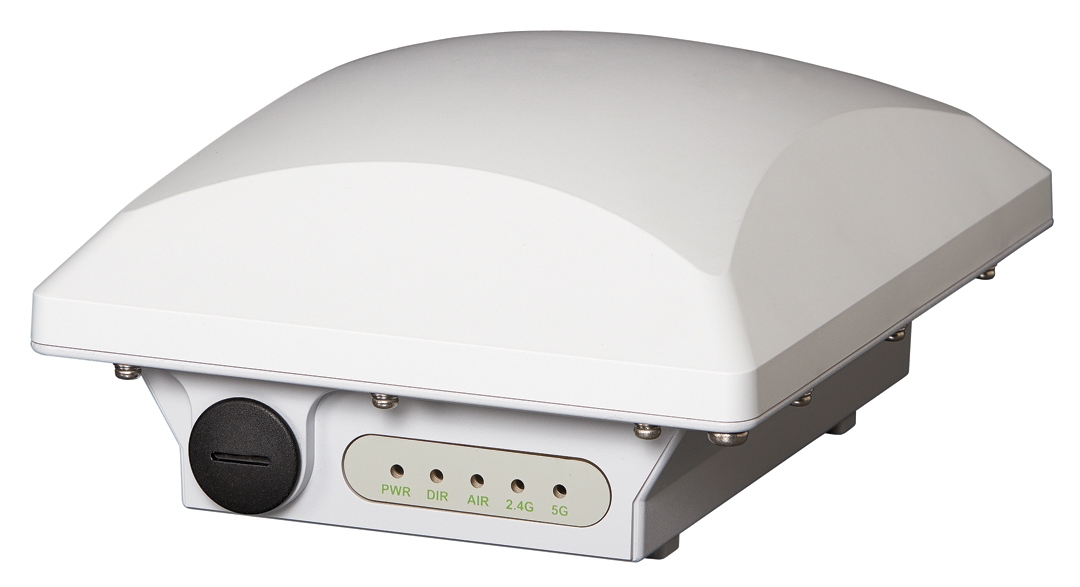

Точка доступа ZoneFlex T301n (901-T301-WW61)

Артикул:

901-T301-WW61

Точка доступа ZoneFlex T301n (901-T301-WW61) 901-T301-WW61 #1
Точка доступа ZoneFlex T301n (901-T301-WW61) 901-T301-WW61 #2
Точка доступа ZoneFlex T301n (901-T301-WW61) 901-T301-WW61 #3
Точка доступа ZoneFlex T301n (901-T301-WW61) 901-T301-WW61 #4
BSSID: ·Up to 32 (27 configurable) on 2.4 GHz ·Up to 16 (13 configurable) on 5 GHz
Power: ·802.3af PoE Input (Class 3 PD)
Weight: ·5.5 lbs (2.5 kg) with adjustable bracket
Concurrent Stations: ·Up to 500 capable per AP
Ethernet Ports: ·10/100/1000BaseT 802.3,802.3 u,802.3ab ·802.3at/af PoE PD Input ·Jumbo frame support (2290 byte max MTU)
Physical Size: ·23.9 cm (L) x 19.5 cm (W) x 11.0 cm (H) ·(9.4 in x 7.6 in x 4.3 in)
Standards: ·5 GHz IEEE 802.11ac ·2GHz IEEE 802.11g/n
Certifications**: ·U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan
Channelization: ·2.4GHz 802.11b/g/n 20/40 MHz ·5GHz 802.11a/n/ac 20/40/80 MHz
Environmental Conditions: ·Operating temperature range 20°C to 55° C ·Weather protection IP67 per IEC 60529
Frequency Bands: ·IEEE 802.11g/n 2.42.472GHz (ch113 CE, ch111 US) ·IEEE 802.11ac 5GHz ·UNII1 5.155.25 GHz ·UNII2 5.255.35 (DFS) ·UNII2B 5.375.47† ·UNII2C 5.475.725 (DFS) ·UNII3 5.7255.825 ·ISM 5.7255.875 ·UNII4 5.855.925†
Hazardous Materials: ·RoHS Directive 2002/95/EC ·RoHS Directive 2011/65/EU ·WEEE
Health and Human Saftey to RF Exposure: ·EN 623112008 ·EN 503852002 ·FCC OET65 ·ICNIRP2010
Immunity: ·EN6100042 Level 4 Contact / Level 3 Air ESD Immunity ·EN6100045 Level 1 &amp 2 AC Surge Immunity ·EN6100043 Level 4 EMC Immunity ·GR10891kV 25A Surge (data ports)
Maximum Tx Power*: ·26 dBm for 2.4GHz ·25 dBm for 5.0GHz
Mounting Options: ·Wall Mount ·Pole Mount Diameter 1” to 2.5”
Physical Layer Modulation Data Rate: ·2.4GHz 802.11b/g/n 300Mbps ·5GHz 802.11a/n/ac 867Mbps
Power Draw: ·?PoE Input ·Idle 6.5W ·Typical 7.5W ·Peak 11W
Railway and Rolling Stock: ·EN50155 ·EN501211 EMC ·EN501214 Immunity ·EN61373 Shock &amp Vibration
Safety: ·Safety ListingEU ·EN 6095012006/A122011 ·EN 60950222006/AC2008 ·International ·CB Scheme Certificate ·CB Bulletin ·IEC 609501 2005 Second Edition ·IEC 6095022 2005 First edition ·CISPR 22 ·CISPR 24 ·CAN/CSA C22.2 609501 Edition 2 ·CAN/CSA C22.2 6095022 Edition 1
Simultaneous VoIP Clients: ·Up to 30
Transporation: ·ISTA 2A ·Random Vibration &amp Drop Test ·Compression &amp Loose Cargo Test ·ETSI EN 300 01922 Specification T 2.2 ·Careful transportation
WLAN Radio Configuration: ·Dual band concurrent 2 x 22 stream radios
Под заказ
Цена по запросу

901-T301-WW61 Точки доступа для корпоративных сетей Ruckus

Power       ·  802.3af PoE Input (Class 3 PD)
Physical Size       ·  23.9 cm (L) x 19.5 cm (W) x 11.0 cm (H)
      ·  (9.4 in x 7.6 in x 4.3 in)
Weight       ·  5.5 lbs (2.5 kg) with adjustable bracket
Ethernet Ports       ·  10/100/1000Base-T 802.3,802.3 u,802.3ab
      ·  802.3at/af PoE PD Input
      ·  Jumbo frame support (2290 byte max MTU)
Environmental Conditions       ·  Operating temperature range: -20°C to 55° C
      ·  Weather protection: IP67 per IEC 60529
Power Draw       ·  ?PoE Input
      ·  Idle: 6.5W
      ·  Typical: 7.5W
      ·  Peak: 11W
Mounting Options       ·  Wall Mount
      ·  Pole Mount Diameter 1” to 2.5”


Physical Layer Modulation Data Rate       ·  2.4GHz 802.11b/g/n 300Mbps
      ·  5GHz 802.11a/n/ac 867Mbps
Concurrent Stations       ·  Up to 500 capable per AP
Simultaneous VoIP Clients       ·  Up to 30

Standards       ·  5 GHz IEEE 802.11ac
      ·  2GHz IEEE 802.11g/n
Frequency Bands          ·  IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US)
      ·  IEEE 802.11ac 5GHz
      ·  U-NII-1 5.15-5.25 GHz
      ·  U-NII-2 5.25-5.35 (DFS)
      ·  U-NII-2B 5.37-5.47†
      ·  U-NII-2C 5.47-5.725 (DFS)
      ·  U-NII-3 5.725-5.825
      ·  ISM 5.725-5.875
      ·  U-NII-4 5.85-5.925†
WLAN Radio Configuration       ·  Dual band concurrent 2 x 2:2 stream radios
Maximum Tx Power*       ·  26 dBm for 2.4GHz
      ·  25 dBm for 5.0GHz
Channelization       ·  2.4GHz 802.11b/g/n 20/40 MHz
      ·  5GHz 802.11a/n/ac 20/40/80 MHz
BSSID       ·  Up to 32 (27 configurable) on 2.4 GHz
      ·  Up to 16 (13 configurable) on 5 GHz
Certifications**       ·  U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan
Transporation       ·  ISTA 2A:
      ·  Random Vibration & Drop Test
      ·  Compression & Loose Cargo Test
      ·  ETSI EN 300 019-2-2 Specification T 2.2
      ·  Careful transportation
Safety       ·  Safety Listing - EU
      ·  EN 60950-1:2006/A12:2011
      ·  EN 60950-22:2006/AC:2008
      ·  International
      ·  CB Scheme Certificate
      ·  CB Bulletin
      ·  IEC 60950-1: 2005 Second Edition
      ·  IEC 60950-22: 2005 First edition
      ·  CISPR 22
      ·  CISPR 24
      ·  CAN/CSA C22.2 60950-1 Edition 2
      ·  CAN/CSA C22.2 60950-22 Edition 1
Health and Human Saftey to RF Exposure       ·  EN 62311:2008
      ·  EN 50385:2002
      ·  FCC OET-65
      ·  ICNIRP:2010
Hazardous Materials       ·  RoHS Directive 2002/95/EC
      ·  RoHS Directive 2011/65/EU
      ·  WEEE
Immunity       ·  EN61000-4-2 Level 4 Contact / Level 3 Air ESD Immunity
      ·  EN61000-4-5 Level 1 & 2 AC Surge Immunity
      ·  EN61000-4-3 Level 4 EMC Immunity
      ·  GR1089 - 1kV 25A Surge (data ports)
Railway and Rolling Stock       ·  EN50155:
      ·  EN50121-1 EMC
      ·  EN50121-4 Immunity
      ·  EN61373 Shock & Vibration
