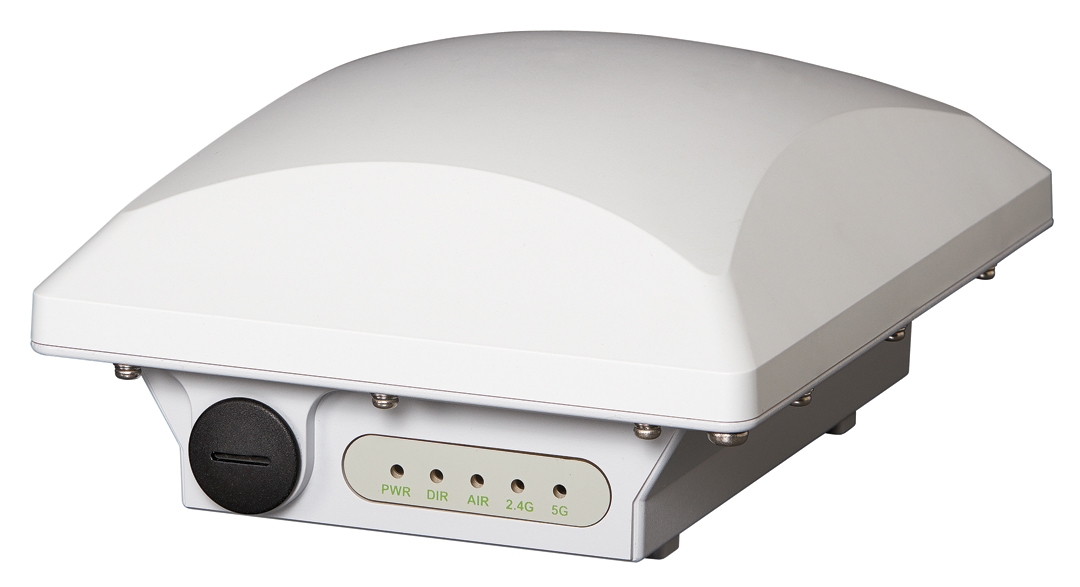

Точка доступа Ruckus ZoneFlex T301s 901-T301-WW51

Name: Точка доступа Ruckus ZoneFlex T301s 901-T301-WW51
Brand: Ruckus
SKU: 901-T301-WW51
Availability: PreOrder

Артикул:

901-T301-WW51

BSSID: Up to 32 (27 configurable) on 2.4 GHz Up to 16 (13 configurable) on 5 GHz

Power: 802.3af PoE Input (Class 3 PD)

Weight: 5.5 lbs (2.5 kg) with adjustable bracket

Concurrent Stations: Up to 500 capable per AP

Ethernet Ports: 10/100/1000BaseT 802.3,802.3 u,802.3ab 802.3at/af PoE PD Input Jumbo frame support (2290 byte max MTU)

Physical Size: 23.9 cm (L) x 19.5 cm (W) x 11.0 cm (H) (9.4 in x 7.6 in x 4.3 in)

Standards: 5 GHz IEEE 802.11ac 2GHz IEEE 802.11g/n

Certifications**: U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan

Channelization: 2.4GHz 802.11b/g/n 20/40 MHz 5GHz 802.11a/n/ac 20/40/80 MHz

Environmental Conditions: Operating temperature range 20°C to 65° C Weather protection IP67 per IEC 60529

Frequency Bands: IEEE 802.11g/n 2.42.472GHz (ch113 CE, ch111 US) IEEE 802.11ac 5GHz UNII1 5.155.25 GHz UNII2 5.255.35 (DFS) UNII2B 5.375.47† UNII2C 5.475.725 (DFS) UNII3 5.7255.825 ISM 5.7255.875 UNII4 5.855.925†

Hazardous Materials: RoHS Directive 2002/95/EC RoHS Directive 2011/65/EU WEEE

Health and Human Saftey to RF Exposure: EN 623112008 EN 503852002 FCC OET65 ICNIRP2010

Immunity: EN6100042 Level 4 Contact / Level 3 Air ESD Immunity EN6100045 Level 1 &amp 2 AC Surge Immunity EN6100043 Level 4 EMC Immunity GR10891kV 25A Surge (data ports)

Maximum Tx Power*: 26 dBm for 2.4GHz 25 dBm for 5.0GHz

Mounting Options: Wall Mount Pole Mount Diameter 1” to 2.5”

Physical Layer Modulation Data Rate: 2.4GHz 802.11b/g/n 300Mbps 5GHz 802.11a/n/ac 867Mbps

Power Draw: PoE Input Idle 6.5W Typical 7.5W Peak 11W

Railway and Rolling Stock: EN50155 EN501211 EMC EN501214 Immunity EN61373 Shock &amp Vibration

Safety: Safety ListingEU EN 6095012006/A122011 EN 60950222006/AC2008 International CB Scheme Certificate CB Bulletin IEC 609501 2005 Second Edition IEC 6095022 2005 First edition CISPR 22 CISPR 24 CAN/CSA C22.2 609501 Edition 2 CAN/CSA C22.2 6095022 Edition 1

Simultaneous VoIP Clients: Up to 30

Transporation: ISTA 2A Random Vibration &amp Drop Test Compression &amp Loose Cargo Test ETSI EN 300 01922 Specification T 2.2 Careful transportation

WLAN Radio Configuration: Dual band concurrent 2 x 22 stream radios

Под заказ

Цена по запросу

901-T301-WW51 Точки доступа для корпоративных сетей Ruckus

Технические характеристики

Power	802.3af PoE Input (Class 3 PD)
Physical Size	23.9 cm (L) x 19.5 cm (W) x 11.0 cm (H) (9.4 in x 7.6 in x 4.3 in)
Weight	5.5 lbs (2.5 kg) with adjustable bracket
Ethernet Ports	10/100/1000Base-T 802.3,802.3 u,802.3ab 802.3at/af PoE PD Input Jumbo frame support (2290 byte max MTU)
Environmental Conditions	Operating temperature range: -20°C to 65° C Weather protection: IP67 per IEC 60529
Power Draw	PoE Input Idle: 6.5W Typical: 7.5W Peak: 11W
Mounting Options	Wall Mount Pole Mount Diameter 1” to 2.5”
Performance and Capacity
Physical Layer Modulation Data Rate	2.4GHz 802.11b/g/n 300Mbps 5GHz 802.11a/n/ac 867Mbps
Concurrent Stations	Up to 500 capable per AP
Simultaneous VoIP Clients	Up to 30
Wi-Fi
Standards	5 GHz IEEE 802.11ac 2GHz IEEE 802.11g/n
Frequency Bands	IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US) IEEE 802.11ac 5GHz U-NII-1 5.15-5.25 GHz U-NII-2 5.25-5.35 (DFS) U-NII-2B 5.37-5.47† U-NII-2C 5.47-5.725 (DFS) U-NII-3 5.725-5.825 ISM 5.725-5.875 U-NII-4 5.85-5.925†
WLAN Radio Configuration	Dual band concurrent 2 x 2:2 stream radios
Maximum Tx Power*	26 dBm for 2.4GHz 25 dBm for 5.0GHz
Channelization	2.4GHz 802.11b/g/n 20/40 MHz 5GHz 802.11a/n/ac 20/40/80 MHz
BSSID	Up to 32 (27 configurable) on 2.4 GHz Up to 16 (13 configurable) on 5 GHz
Certifications**	U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan
Certification Specs
Transporation	ISTA 2A: Random Vibration & Drop Test Compression & Loose Cargo Test ETSI EN 300 019-2-2 Specification T 2.2 Careful transportation
Safety	Safety Listing - EU EN 60950-1:2006/A12:2011 EN 60950-22:2006/AC:2008 International CB Scheme Certificate CB Bulletin IEC 60950-1: 2005 Second Edition IEC 60950-22: 2005 First edition CISPR 22 CISPR 24 CAN/CSA C22.2 60950-1 Edition 2 CAN/CSA C22.2 60950-22 Edition 1
Health and Human Saftey to RF Exposure	EN 62311:2008 EN 50385:2002 FCC OET-65 ICNIRP:2010
Hazardous Materials	RoHS Directive 2002/95/EC RoHS Directive 2011/65/EU WEEE
Immunity	EN61000-4-2 Level 4 Contact / Level 3 Air ESD Immunity EN61000-4-5 Level 1 & 2 AC Surge Immunity EN61000-4-3 Level 4 EMC Immunity GR1089 - 1kV 25A Surge (data ports)
Railway and Rolling Stock	EN50155: EN50121-1 EMC EN50121-4 Immunity EN61373 Shock & Vibration
