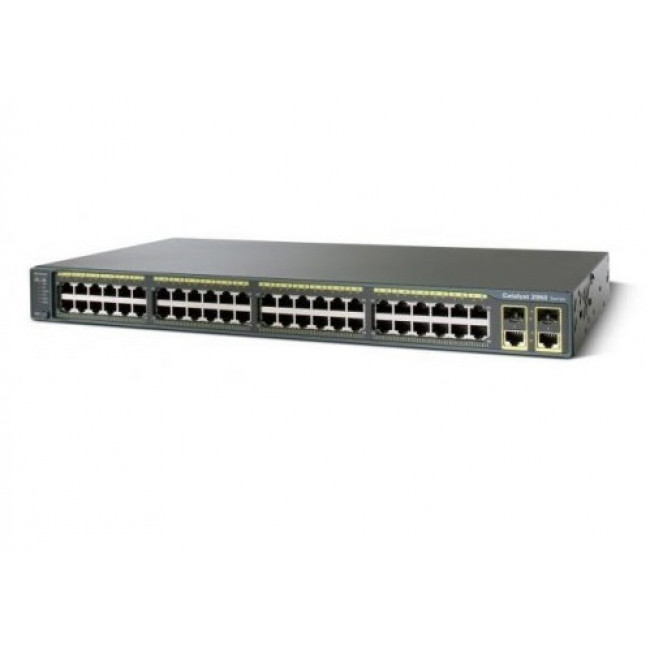

Коммутатор Cisco Catalyst 2960 Plus 48 10/100 + 2 T/SFP LAN Base

Артикул:

WS-C2960+48TC-L

Коммутатор Cisco Catalyst 2960 Plus 48 10/100 + 2 T/SFP LAN Base WS-C2960+48TC-L
Input Voltage: 110 V AC
Form Factor: Rackmountable
Depth: 9.3
Ethernet Technology: Fast Ethernet
Expansion Slot Type: SFP
Height: 1.7
Layer Supported: 2
Manageable: Yes
Media Type Supported: Twisted Pair
Network Technology: 10BaseT
Number of Total Expansion Slots: 2
Package Contents: Catalyst 296048TC Managed Ethernet SwitchConsole CableAC Power Cord4 x Rubber Mounting FeetDocumentation2 x 19 inch Mounting Brackets4 x Number12 Phillips Machine Screws4 x Number8 Phillips Trusshead Screws6 x Number8 Phillips Flathead ScrewsConnector Cover for RPS2 x Number4 Panhead ScrewsCable Guide1 x Black Phillips Machine Screws
Power Source: Power Supply
Product Type: Ethernet Switch
Redundant Power Supply Supported: Yes
Width: 17.5
Management: Cisco Network AssistantCiscoWorks SupportDevice managerCisco Express SetupCiscoView applicationCisco Network Assistant SoftwareRemote Monitoring (RMON)Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized locationNetwork Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switchesCisco IOS CLI support provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switche
Product Description: Cisco Catalyst 2960 Plus 48 10/100 + 2 T/SFP LAN Base
Manufacturer: Cisco
Flash Memory: 32 MB
Memory Technology: DRAM
Number of Network (RJ45) Ports: 48
Standard Memory: 64 MB
Uplink Port: Yes
Port/Expansion Slot Details: 48 x Fast Ethernet Network
Product ID: WSC2960+48TCL
Weight (Approximate): 8 lb
Number of SFP Slots: 2
Total Number of Network Ports: 48
Twisted Pair Cable Standard: Category 5
Additional Information: Dualpurpose uplink port has one 10/100/1000 Ethernet port and one Small FormFactor Pluggable (SFP)based Gigabit Ethernet port, with one port active at a timeLAN Base Image installedConfigurable up to 8000 MAC addressesConfigurable up to 255 IGMP groupsSuperior Redundancy for Fault BackupIntegrated Cisco IOS Software Features for Bandwidth OptimizationAdvanced QoSGranular Rate LimitingNetworkwide Security Features
Под заказ
Цена по запросу

WS-C2960+48TC-L Коммутаторы Cisco

Коммутаторы Cisco Catalyst 2960-Plus поддерживают Intelligent features (создание сложных списков управления доступом, расширенная безопасность), комбинированные гигабитные аплинки (медный10/100/1000BASE-T Ethernet или SFP-модуль для перехода в другую среду - Cisco 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX, 100BASE-FX, 100BASE-LX, CWDM SFP). Также, устройства Catalyst 2960-Plus поддерживают QoS, пошаговый Rate Limiting, ACL (на базе MAC или IP адресов, портов UDP/ TCP) и multicast services, возможность регулировать скорость передачи на каждом порту с шагом 64 кбит, Link Aggregation для организации более скоростных соединений между коммутаторами и серверами, возможность организации транковых соединений на каждом порту с помощью тэгов 802.1q, до 255 VLAN на коммутатор, до 4000 VLAN ID и управление через Cisco Network Assistant (поддерживает широкий спектр моделей коммутаторов от Cisco Catalyst 2960 до Cisco Catalyst 4506).

Прошивка коммутаторов Cisco Catalyst 2960-Plus выпускается в образах LAN Base и Lan Lite Image. LAN Base имеет более широкий функционал, включая улучшенную безопасность (ACLs), DHCP Snooping и добавочные функции по контролю доступа - Web authentication и расширения 802.1x, добавочные возможности установок качества обслуживания QoS, поддержка избыточного питания RPS и большого количества SFP-портов. Функции Flex Links и Link State Tracking, увеличенное количество поддерживаемых VLANs (до 256), IPv6 Host, MLD Snooping, LLDP-MED, RSPAN, MVR, DHCP Option 82, и IP SLA (responder) и прочее.

Технические характеристики коммутатора Cisco WS-C2960+48TC-L:

Manufacturer:

Cisco

Product ID:

WS-C2960+48TC-L

Product Description:

Cisco Catalyst 2960 Plus 48 10/100 + 2 T/SFP LAN Base

Product Type:

Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:

48

Uplink Port:

Yes

Number of Network (RJ-45) Ports:

48

Port/Expansion Slot Details:

48 x Fast Ethernet Network

2 x Gigabit Ethernet Uplink

2 x Fast Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 5

Ethernet Technology:

Fast Ethernet

Network Technology:

10Base-T

10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

2

Expansion Slot Type:

SFP

Number of SFP Slots:

2

Network & Communication

Layer Supported:

2

Management & Protocols

Manageable:

Yes

Management:

  • Cisco Network Assistant
  • CiscoWorks Support
  • Device manager
  • Cisco Express Setup
  • CiscoView application
  • Cisco Network Assistant Software
  • Remote Monitoring (RMON)
  • Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location
  • Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches
  • Cisco IOS CLI support provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches
  • Cisco Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN
  • Switching Database Manager templates for security and QoS allow administrators to easily adjust memory allocation to the desired features based on deployment-specific requirements
  • VLAN trunks can be created from any port using standards-based 802.1q tagging
  • Up to 255 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported.
  • Four thousand VLAN IDs are supported
  • Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting
  • Cisco VTP supports dynamic VLANs and dynamic trunk configuration across all switches
  • SNMP v1, v2c, and v3 and Telnet interface support delivers comprehensive in-band management, and a CLI-based management console provides detailed out-of-band management
  • Cisco Discovery Protocol Versions 1 and 2 help enable a CiscoWorks network-management station for automatic switch discovery

Memory

Standard Memory:

64 MB

Memory Technology:

DRAM

Flash Memory:

32 MB

Power Description

Input Voltage:

110 V AC

220 V AC

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Physical Characteristics

Form Factor:

Rack-mountable

Wall Mountable

Desktop

Height:

1.7"

Width:

17.5"

Depth:

9.3"

Weight (Approximate):

8 lb

Miscellaneous

Package Contents:

  • Catalyst 2960-48TC Managed Ethernet Switch
  • Console Cable
  • AC Power Cord
  • 4 x Rubber Mounting Feet
  • Documentation
  • 2 x 19 inch Mounting Brackets
  • 4 x Number-12 Phillips Machine Screws
  • 4 x Number-8 Phillips Truss-head Screws
  • 6 x Number-8 Phillips Flat-head Screws
  • Connector Cover for RPS
  • 2 x Number-4 Pan-head Screws
  • Cable Guide
  • 1 x Black Phillips Machine Screws

Additional Information:

  • Dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time
  • LAN Base Image installed
  • Configurable up to 8000 MAC addresses
  • Configurable up to 255 IGMP groups
  • Superior Redundancy for Fault Backup
  • Integrated Cisco IOS Software Features for Bandwidth Optimization
  • Advanced QoS
  • Granular Rate Limiting
  • Networkwide Security Features
